P2.5 Indoor 640×480 Die-cast Magnetic Front Service Video LED Screen

P2 Indoor 640×480 Die-cast Magnetic Front Service HD LED Display Panel Features:

1. Maintain the LED module before using the magnet, it is very easy to install and remove

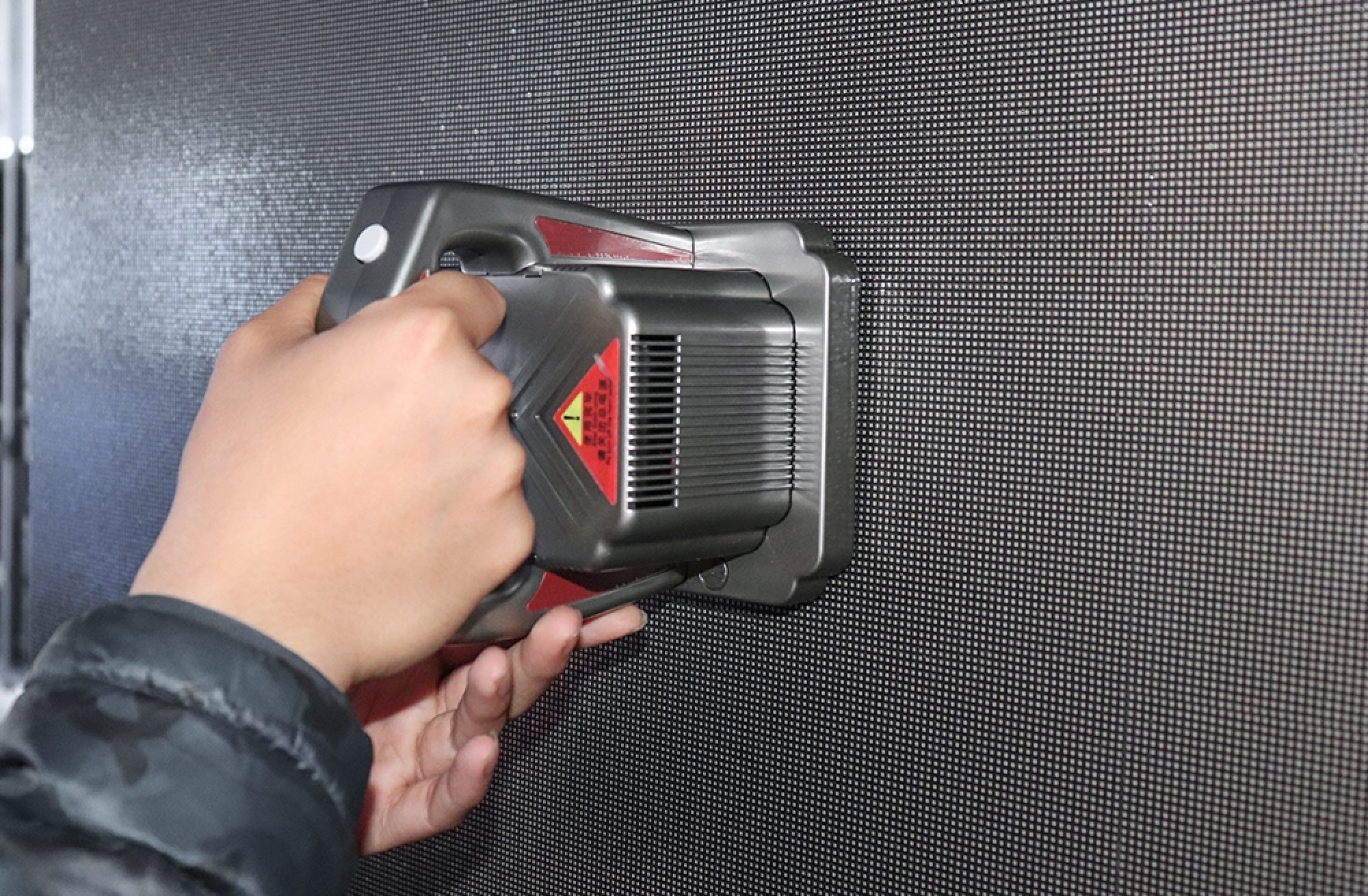

2. 640x480mm box, moderate size, easy to install, you can use vacuum suction tool to quickly remove the module
3. The frame can be made of aluminum alloy structure, which can be installed quickly

Expert Help? (972) 243-5464

Product File: Specification Sheet

Category:

Description

Notice before order:

1) Parts included : High-quality cabinets, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

P2.5 Indoor 640×480 Die-cast Magnetic Front Service Video LED Screen Function:



1. Maintain the LED module before using the magnet, it is very easy to install and remove
2. 640x480mm box, moderate size, easy to install, you can use vacuum suction tool to quickly remove the module
3. The frame can be made of aluminum alloy structure, which can be installed quickly
4. Wide viewing angle. Both horizontal and vertical viewing angles can reach 120 degrees.
5. Good color and brightness consistency.
6. Small gaps between modules and perfect screen flatness. The gap between the modules is less than 1 mm, and the screen flatness is less than 1 mm.
7. 1920HZ refresh rate, 14-bit color depth, 160,000 pixels/square meter
P2.5 Indoor 640×480 Die-cast Magnetic Front Service Video LED Screen Application:



Indoor advertising LED display, indoor rental LED display
P2.5 Indoor 640×480 Die-cast Magnetic Front Service Video LED Screen Parameters:



LED Lamp Specification
Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red SMD2121 80-104mcd 120° 618-623nm 25℃,15mA
Green 270-338mcd 120° 515-519nm 25℃,10mA
Blue 31-39mcd 120° 465-469nm 25℃,5mA
Module Parameter
Pixel Pitch 2.5mm
Pixel Configuration SMD2121
Density 160,000 pixels/㎡
Module Resolution 128pixel(L) * 64pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 18mm(D)
Driving Mode Constant current, 1/32 duty
LED Cabinet
Module Quantity in a Cabinet 2(L) *3(H)
Cabinet Dimension 640(L)*480(H)* 90(D)mm
Cabinet Resolution 256 pixel(L) * 192 pixel(H)
Cabinet Material Die-cast aluminum
Cabinet Weight ≈8KG
Electricity Parameter
Optical Ratings
Brightness ≥1,000 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥2.5m
Gray Grade 14 bits
Display Color 4.4 trillion colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz Switchable
Max. Power Consumption 457 W/㎡
Avg. Power Consumption 153 W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m (Ethernet cable);
20KM (optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP31
Out-of-Control Pixel Rate ≤0.01%
