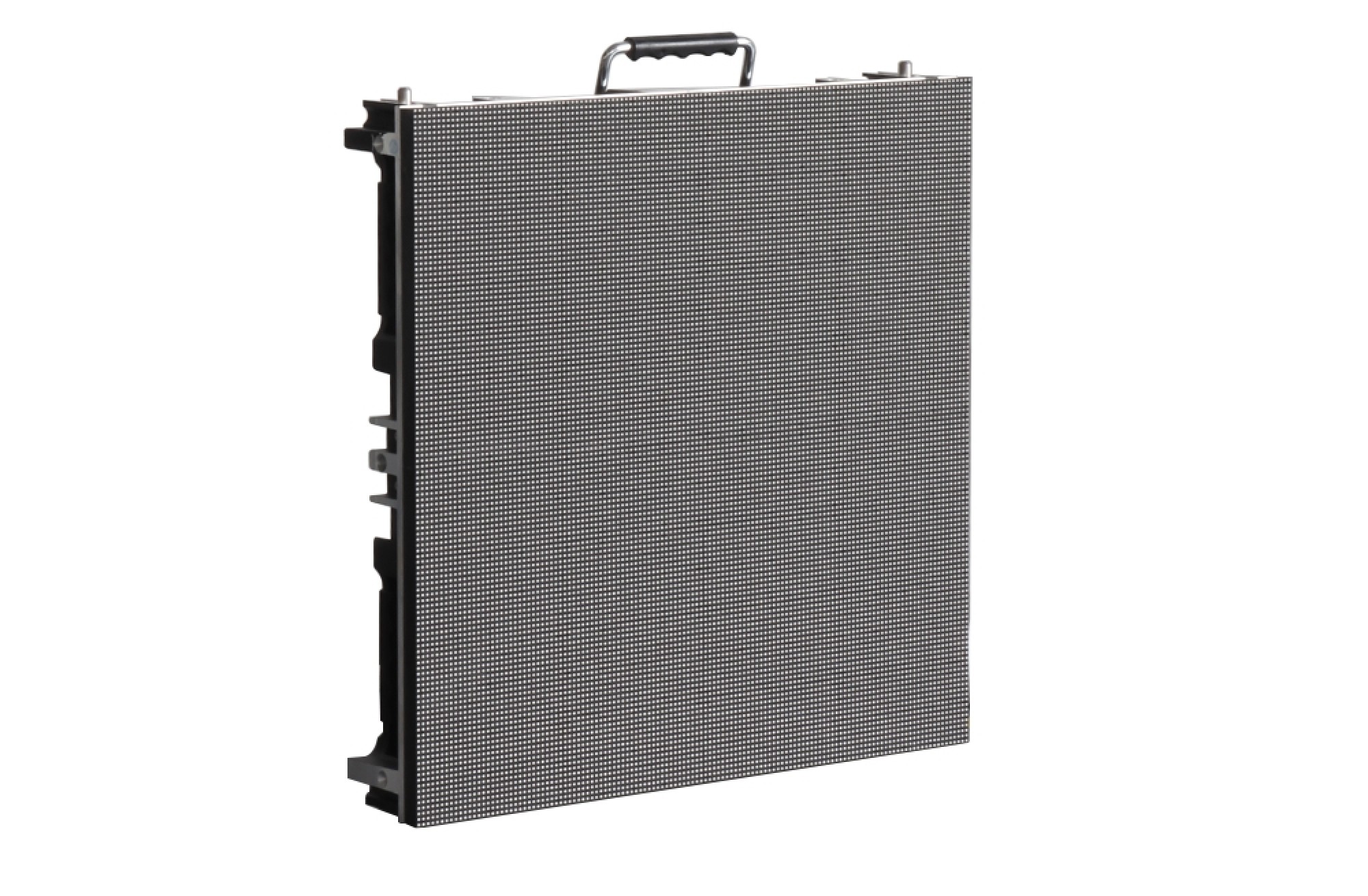

P3.91 Outdoor Die-Cast Rental LED Screen Panel 500x500mm

P3.91 Outdoor Die-Cast Rental LED Screen Panel, 65,536pixel/sqm, 6000cd/sqm brightness, outdoor HD rental LED display. Reformable which can be inner outward curve and other irregular shape. Hot seller..

Expert Help? (972) 243-5464

Product File: Specification Sheet

Category:

Description

Notice before order:

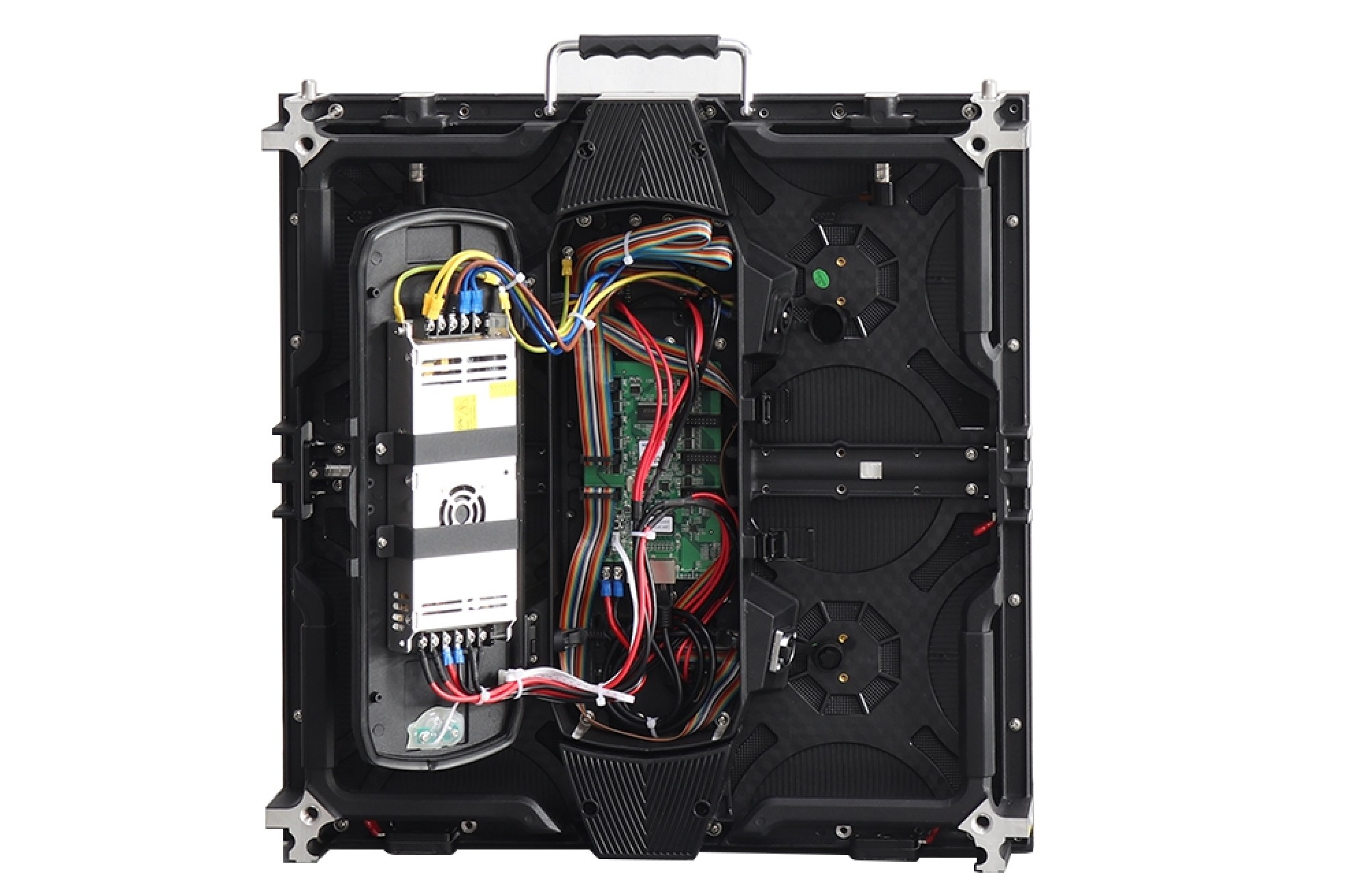

1) Parts included: waterproof steel cabinet, LED modules, power supplies, NOVASTAR receiving card, power cables and signal cables. It does not include sending card. You can order the sending card by this link: NOVASTAR MSD300 sending card.

2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.

3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.

4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.



P3.91 Outdoor Adaptable Die-Cast Rental LED Screen Panel Features  :

1) Hot Sale 500*500mm Die- cast aluminum Rental Cabinet. Slim and light weight.

2) Strong Fast Lock, More accurate and easy to handle, make it minimum gaps between cabinet.

3)  Light weight, only 9KG for 500x500mm&nb sp;cabinet.

4) ±15° angle adjustable between cabinet, enable to make into inner arc or outter arc shape even rount shape use 12 cabinet.

5)  Fast lock design, good rental hanging&n bsp;solution.



P3.91 Outdoor Adaptable Die-Cast Rental LED Screen Panel Applications:

Outdoor Rental LED Display panel

Outdoor Rental Arc/ Round/ Cylinder/ Column LED Display Panel



Parameters of P3.911 500*500mm outdoor rental led display:

LED Lamp Specification

Color Package Intensity Viewing Angle Wavelength Testing Conditions
Red

SMD1921

180mcd

120°

622nm

25℃,15mA

Green

SMD1921

480mcd

120°

522nm

25℃,8mA

Blue

SMD1921

85mcd

120°

472nm

25℃,5mA

Module Parameter

Pixel Pitch 3.91mm
Pixel Configuration SMD1921
Density 65,536 pixels/㎡
Module Resolution 64pixel(L) *64pixel(H)
Module Dimension 250mm(L) * 250mm(H) * 25mm(D)
Driving Mode Constant current, 1/16 duty
Module Mask Pure black mask—high contrast screen

LED Cabinet

Module Quantity in a Cabinet 2(L) * 2(H)
Cabinet Dimension 500(L)* 500(H)* 80(D)mm
Cabinet Resolution 128(L) * 128(H)
Cabinet Material Die-Cast Aluminum
Cabinet Weight ≈9KG

Electricity Parameter

Optical Ratings
Brightness ≥6,000 cd/㎡
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥4m
Gray Grade 14 bits
Display Color 4.4 trillion Colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz  Switchable
Max. Power Consumption 720 W/㎡
Avg. Power Consumption 240 W/㎡
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance 100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Operating Time ≥72 hours
Protection Grade IP65(front), IP54(rear)
Out-of-Control Pixel Rate ≤0.01%
